Nuremberg-based drive manufacturer Baumüller and Sensor-Technik Wiedemann GmbH (STW) from Kaufbeuren have collaborated closely on a joint project to develop a mobile diesel-electric machine.
The recently signed cooperation agreement signals the expansion of the joint development and production operations in the field of hybrid drive technology.

Photo: Baumüller Holding

The mobile diesel-electric machine is part of a powerMELA® hybrid drive system designed to be used in, for example, agricultural and construction machinery or commercial vehicles.
It consists of a generator which is driven by a diesel engine and generates a direct voltage of 745 volts via an integrated rectifier.
The resulting power can then be made available to a rotation-independent DC power supply network.

Baumüller and Sensor-Technik Wiedemann cooperate in the development of a hybrid drive system, Photo: Baumüller Holding

Other electrical machines then function as motors to drive the wheels from this power system either directly or via gears and can be easily controlled and regulated via a CAN bus system. The power supply network also permits the electrical operation of add-on units and accessories.
Excess energy can be stored in a battery.

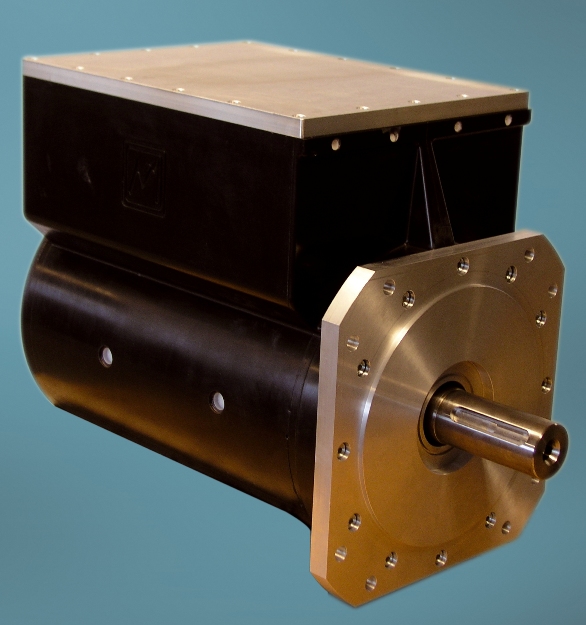

Modified DS-series servo motors from Baumüller are used for the generator, the main drives and the auxiliary drives.
Because of their high power density and excellent efficiency, these motors are particularly suitable for applications which call for high energy efficiency.

Wolfgang Wiedemann, CEO of Sensor-Technik Wiedemann Photo: Sensor-Technik Wiedemann

“The demand for powerful, efficient hybrid drives for mobile machines is growing enormously. Thanks to our technology partnership with Baumüller we can call on the expertise of a drive manufacturer whose electric motors have been established in the market for decades. This enabled us to create synergies and develop a sustainable solution whose market prospects we regard as excellent,” says Wolfgang Wiedemann, CEO of Sensor-Technik Wiedemann, in describing the motivation for the joint R&D work.

Andreas Baumüller, Chief Technical Officer at Baumüller Holding GmbH & Co. KG. Photo: Baumüller Holding

For Nuremberg-based drive and automation specialist Baumüller the collaboration with STW means the development of new markets:
“In classic industrial applications the system concept and the replacement of hydraulic elements to improve the energy balance are playing an increasingly important role. Our knowledge in this field complements STW’s expertise as a system integrator in the field of sensor and control technology, thereby opening up new opportunities in the technical design of the drive system for both sides,” says Andreas Baumüller, Chief Technical Officer at Baumüller Holding GmbH & Co. KG.

Photo: Baumüller Holding

“Because of the high energy costs and increasing environmental awareness there will be no way round hybrid drive concepts in future, particularly with regards to mobile machines. We are therefore convinced that the powerMELA® project and the cooperation with STW represent an important step towards gaining a lasting foothold in this market of the future,” continues Baumüller.


About Sensor-Technik Wiedemann


Sensor-Technik Wiedemann GmbH was established in 1985 by Katharina and Wolfgang Wiedemann.
Apart from STW, the company group includes Kaufbeurer Mikrosysteme Wiedemann GmbH (KMW), STW Technic LP, USA and Sensor Technik Ltd., UK.
Cooperations with numerous representatives around the world are also in place.
The company currently has a workforce of some 380 staff.

High-tech products in the fields of microelectronics and power electronics are developed and manufactured.
The product portfolio covers closed- and open-loop control systems for mobile machines and microsystem-based sensors for harsh operating conditions.

The company group develops future orientated products for automotive hybrid drives and for the use of fuel cells.

Sensor-Technik Wiedemann has been a long-term, reliable partner to a broad customer base from the automotive, mechanical engineering, plant engineering, medical technology and food industries and is one of the leading suppliers in the fields of programmable controllers and customised measurement technology applications.

In future, the company group plans to continue to play a significant role in the development, production and marketing of components for mobile machines. In particular, the aim is to advance the development of energy-saving and convenient systems.
This involves developing components for diesel-electric drives, battery-powered machines and as part of the future vision, components for fuel cell drives.


http://www.baumueller.de/e_press_2010_2.htm


Perfect duo

Baumüller and ZAE develop high-efficiency food-safe geared motor


Nuremberg.

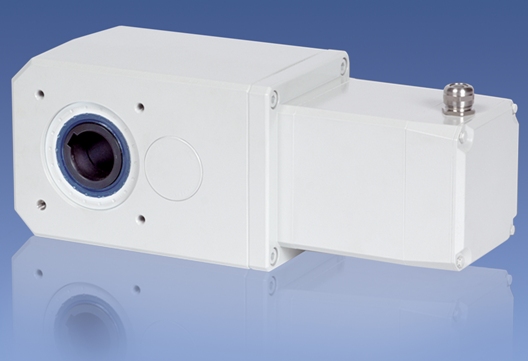

Drive manufacturers Baumüller and ZAE-AntriebsSysteme GmbH & Co. KG have jointly developed a two-stage bevel helical gear unit with integrated encoder-less permanent-magnet synchronous motor which achieves efficiencies of up to 90 per cent.
The geared motor is designed as attachable version and its surface finish makes it suitable for sterile applications, for example in the food, beverages and pharmaceutical industries.

Baumüller and ZAE develop high-efficiency food-safe geared motor. Photo: Baumüller Holding

The drive system is based on a standard Baumüller DSC-series servo motor from which a motor/gearbox combination was derived.
The motor was then electrically and mechanically optimised in the process.
A special winding system permits the optimum system design, and a special bearing concept enables the two-stage bevel helical gear unit to be integrated.
The gear unit was developed by ZAE and delivers efficiencies of up to 90 percent in combination with the integrated synchronous motor.

Photo: Baumüller Holding

The robust construction and modern design simplify the fitting of the drive system which was developed as an attachable version.
It is attached onto the machine shaft as a unit and is generally also braced by means of a torque support.

The alignment of the drive is user-definable in 90° increments, enabling the motor/drive combination to be incorporated ideally in the machine.
Furthermore, the drive is suitable for sterile applications.
Thanks to the integrated connection system, its surface finish and the lack of “dirt traps” it is easy to clean and it is difficult for germs to collect.
On request, the drive is also available with special coatings for the food industry.

Photo: Baumüller Holding

Since the motor/gearbox combination achieves efficiencies of up to 90 per cent and the surface temperature does not exceed 75° Celsius even at full power, cooling fins and fans are superfluous.
The drives are also practically maintenance-free.
The lubricant used (the user can choose between H1 and H2) ensures that an oil change is only necessary after well over 20,000 operating hours.
Since an encoder is not used, the system is considerably less susceptible to faults.

Photo: Baumüller Holding

The technical innovations are reflected in the reduced life cycle costs.
Lower energy consumption, low maintenance costs and minimal susceptibility to faults mean that the higher costs resulting from the slightly higher purchase price are quickly balanced out.
Furthermore, savings can be achieved because the drive system has large usable operating ranges and the number of motor and transmission ratio variants needed is reduced.

The motor/gearbox solution was developed to series maturity by Baumüller and ZAE in just one year. If required, the motors are also available in the same design with an encoder or holding brake.
Work is in progress on expanding the solution into a geared motor series


About ZAE-AntriebsSysteme GmbH & Co. KG


Large spur gears for printing machines were being successfully manufactured as long ago as 1903 in a machine factory in Altona (now part of the city-state of Hamburg).
After a period of strong economic growth this factory became Zahnradfabrik Altona Elbe GmbH in 1919.

Over the years ZAE, now ZAE-AntriebsSysteme GmbH & Co. KG, has developed into an established and experienced provider of high-quality drive solutions with around 165 employees.

The current product range encompasses standard gear units with and without modification, customised drive solutions for specific customer requirements, complete drive units, and technical services.
Customers from around the world gain a competitive edge thanks to individual solutions which they are quickly and easily able to integrate in the relevant application.


About the Baumüller Group


More than 40 locations around the globe and collaboration with customers in every mechanical engineering and industrial sector make drive and automation manufacturer Baumüller the preferred technology partner in all major markets.

Since 1930 the engineering expertise of its staff, currently numbering some 1500, has allowed the Nuremberg-based company group to develop innovative and market-compliant solutions which are used as individual components or complete systems.

Photo: Baumüller Holding

The emphasis is on achieving integrated one-stop automation solutions offering extreme flexibility at the greatest possible cost effectiveness.

Photo: Baumüller Holding

A complete engineering and service offer for all drive engineering applications ensures decisive market benefits for the customer – and better performance from the production lines, systems and machines.

http://www.baumueller.de/e_press_2010_1.htm


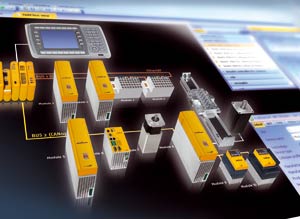

Baumüller is a specialist for intelligent drive and automation systems


The Baumüller Group offers industry and customer-specific automation solutions as a system partner.
At the center is the development of a total machine concept.

The Baumüller Group develops and manufactures:

• Electric motors

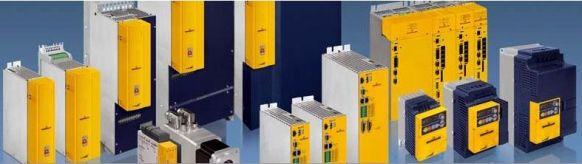

• Converters

• Control engineering

• Networks in industrial communication

• Control cabinets, control pillars, control fields, control consoles

• Sheet metal components and coverings

• Drive systems

Baumüller uses these components to plan and manufacture complete drive and automation systems that are used in all sectors of the mechanical engineering industry for automation purposes.

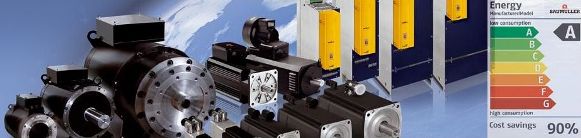

The drive spectrum includes:

• DC motors

• Three-phase motors

• Disc motors

• Linear motors

• Specialty motors

This drive spectrum allows the development of an automation system that operates machines with complex functions in a highly-dynamic and absolutely precise manner.

Today, drive solutions and automation systems from Baumüller can be found in all sectors of mechanical engineering.
The main areas are represented by the sectors:

• Printing

• Plastics

• Textile

• Packaging

• General motion.

Years of industry-specific experience and a profound expertise in automation systems and drive solutions make the Baumüller Group a reliable system partner.

The Baumüller Group manufactures at its headquarters in Nuremberg as well as at these locations:

• Bad Gandersheim

• Kitzingen as well as

• Slov. Konjice (Slovenia)

• Brno (Czech Republic).


Baumüller Reparaturwerk GmbH & Co. KG is the technical service center of the Baumüller group and provides a complete service for electrical machines – from spare parts through to on-site service and conditioning monitoring.
Local and international customers are supported from the headquarters in Nuernberg as well as the subsidiaries in Munich and Kamenz.

Baumüller Reparaturwerk accompanies machine builders and machine operators throughout the life-cycle of their machines.
Optimal maintenance solutions are developed together with the customers in order to maximise machine availability.


Baumüller Anlagen-Systemtechnik GmbH & Co. KG is the system house of the Baumüller Group.
It develops hardware and software solutions for automation as well as complete applications. Together with the mechanical engineering firm, the total concept of the system is specified, followed by the project planning of the automation system.

The control cabinet is manufactured at the locations of the Baumüller Group. Installation and commissioning are carried out exclusively on site at the customer’s location.


Nürmont Installations GmbH & Co. KG , with its focus on assembly and installation of machines and systems, expands the performance spectrum of Baumüller as a system partner for automation.
The headquarters of Nürmont Installations GmbH & Co. KG are located in Feucht near Nuremberg, while its two branch offices are in Freiberg (Saxony) and Stuttgart.

Worldwide, Baumüller is represented at over 40 locations worldwide:

In addition to 14 branch offices in Germany, Baumüller is represented in the EU in Great Britain, France, Spain, Italy, the Netherlands, Austria, Sweden, Finland, Denmark, Poland, the Czech Republic and Slovenia.
Additional European locations can be found in Switzerland and in Turkey.

Photo: Baumüller Holding

On the Asian continent, Baumüller branch offices can be found in Kazakhstan, India, China and South Korea.
